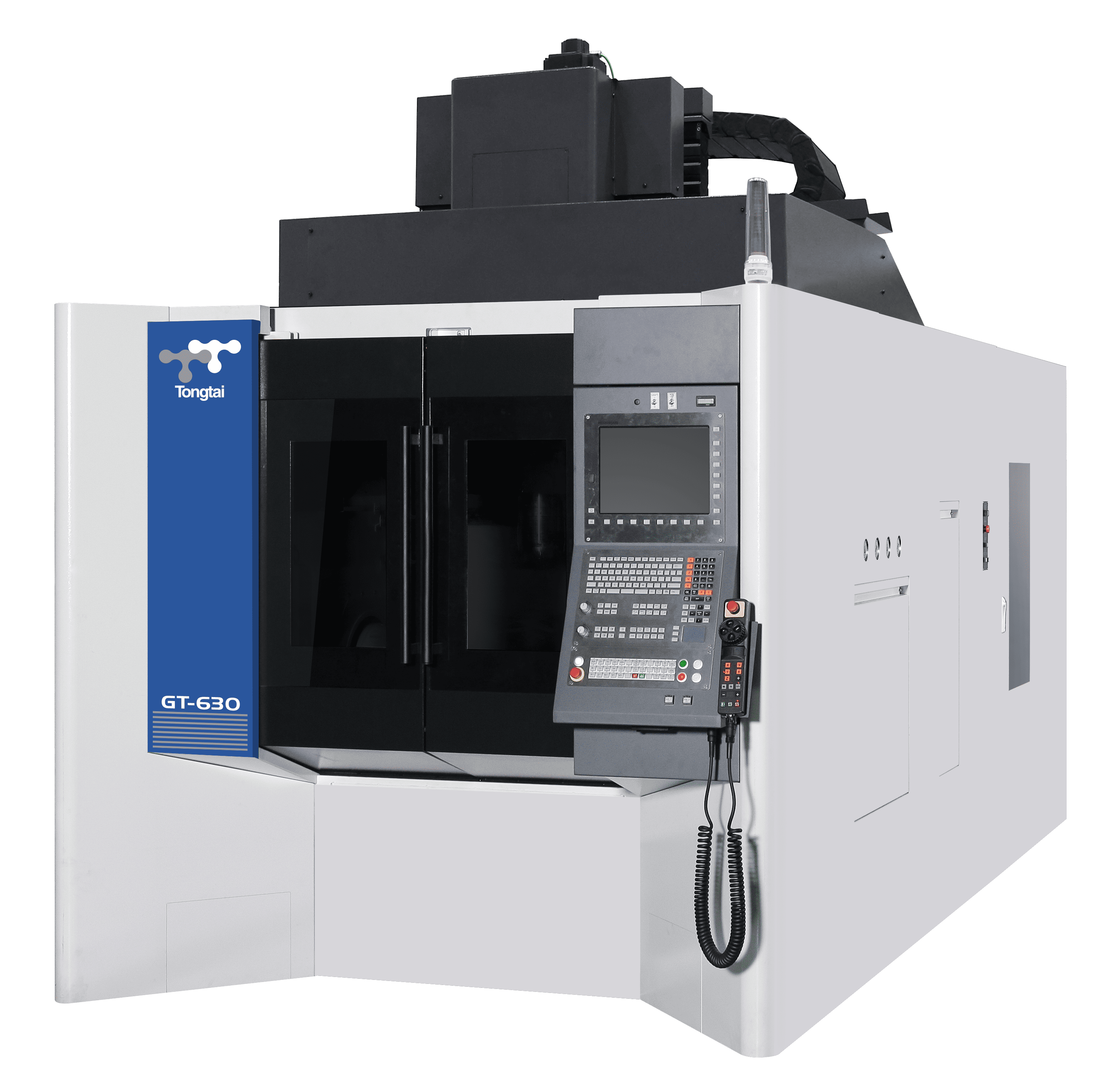

| Section | Feature | Unit | GT630 |
|---|---|---|---|
| TABLE | Table Size | mm | Ø630 |
| Max Load Weight | kg | 600 | |
| Table Height | mm | 900 | |
| Distance Spindle Nose to Table | mm | 150 - 710 | |
| SPINDLE | Spindle Taper | BT40 | |
| Spindle Speed | rpm | 15,000 (Opt. 20,000) | |
| AXES | X Axis Travel | mm | 760 |
| Y Axis Travel | mm | 850 | |
| Z Axis Travel | mm | 560 | |
| A Axis Travel | (-30°) ~ (+100°) | ||
| C Axis Travel | ±360° | ||
| X/Y/Z Rapid Traverse | m/min | 48 / 48 / 48 | |
| A/C Rapid Traverse | 30 / 50 | ||
| ATC | Tool Capacity | pcs | 32 |
| Max Tool Diameter | mm | Ø80/125 | |
| Max Tool Length | mm | 300 | |
| Max Tool Weight | kg | 8 | |
| MOTOR | Spindle Motor Power (50% ED) | kW | 40 / 40 |
| Servo Motor X/Y/Z | kW | 6.5 / 8.6 / 8.6 | |
| Coolant Motor | kW | 0.37 × 2 | |
| MACHINE SIZE | Width × Length | mm | 2,200 × 5,400 |
| Height | mm | 3,390 | |
| Weight | kg | 12,000 |
