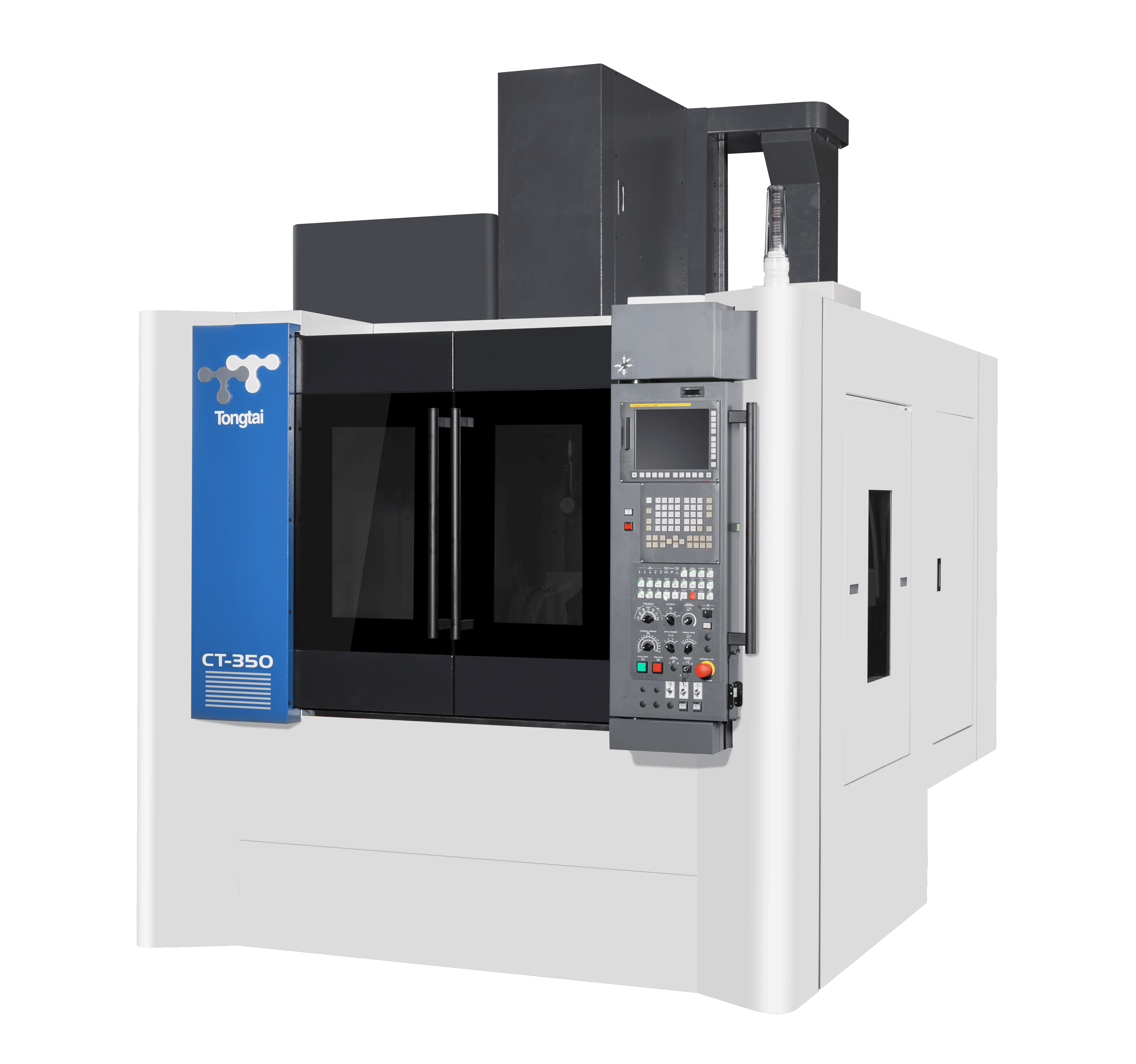

| Section | Specification | Unit | CT-350 |
|---|---|---|---|
| TABLE | Table Size | mm | Ø350 |
| Max Load Capacity | kg | 200 | |
| Table Height | mm | 1,100 | |
| Max Workpiece Dimensions | mm | Ø380 × 220 | |
| SPINDLE | Spindle Taper | BT40 | |
| Spindle Speed | rpm | 15,000 (Opt. 20,000) | |
| AXES | X Axis Travel | mm | 400 |
| Y Axis Travel | mm | 510 | |
| Z Axis Travel | mm | 510 | |
| A Axis Travel | (+30°) ~ (-120°) | ||
| C Axis Travel | ±360° | ||
| X/Y/Z Rapid Feed | m/min | 36 / 36 / 30 | |
| A/C Rapid Feed | 40 / 33.3 | ||
| ATC | Tool Capacity | pcs | 24 (Opt. 30, 40) |
| Max Tool Diameter | mm | Ø76 (Ø125) | |
| Max Tool Length | mm | 300 | |
| Max Tool Weight | kg | 7 | |
| MOTOR | Spindle Motor Power (50% ED) | kW | 15 |
| Servo Motor X/Y/Z | kW | 2.7 / 2.7 / 4.0 | |
| Cooling Motor | kW | 0.37 × 2 | |
| MACHINE DIMENSIONS | Width × Length | mm | 2,150 × 3,104 |
| Height | mm | 3,121 | |
| Weight | kg | 7,000 |
